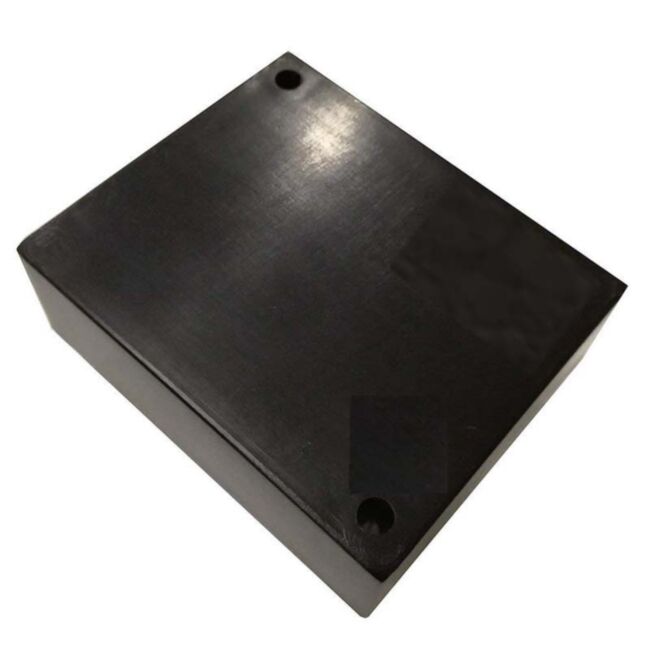

Suitable for Cummins Generator Set - ECU-SS30 Overspeed Protection Board ECUSS30

The ECU-SS30 Overspeed Protection Board is a high-quality device designed to protect your Cummins Generator Set from overspeeding. With a model number of ECU-SS30 and a part number of ECUSS30, this generator governor controller is a reliable and robust solution for various industrial applications such as generators, pumps, and compressors.

One of the notable advantages of the ECU-SS30 is its two-speed switch feature, which allows operators to set the desired speed for their generator set. This switch can also be used for the verification mode that ensures system safety. Additionally, the board has a wide speed sensing range from 500 to 9500 Hertz, making it suitable for use in various environments.

The ECU-SS30 also boasts a high current output capability of up to 10 amps that can control a solenoid connection, ensuring smooth operation and excellent performance. Furthermore, the module is fully encapsulated with epoxy to enhance its field reliability, making it an excellent choice for challenging industrial applications.

The device has a wide temperature range, from -40 to +85 C, which ensures its durability even in harsh conditions. The board's LEDs indicate when the crank disconnect and overspeed events occur, making it easy to monitor system status.

The device's output rating is 10 amps max, which is suitable for both 12 volt and 24 volt modes. The 12 volt mode has a range of 9 to 15 volts, while the 24 volt mode has a range of 19 to 28 volts.

To conclude, the ECU-SS30 Overspeed Protection Board is an excellent solution for any Cummins Generator Set in need of speed control and overspeed protection. With its robust features and reliable performance, it is an indispensable tool for industrial applications requiring precision control.
