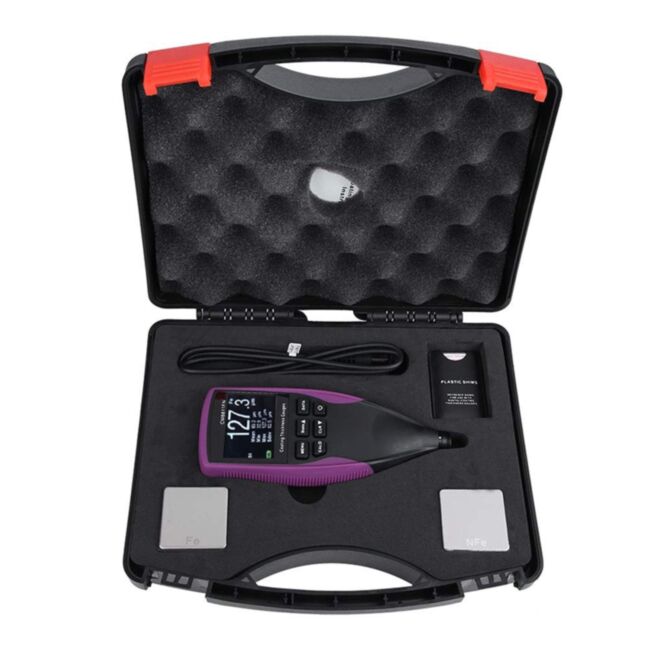

Compatible with CM8811FN Coating Thickness Gauge Range: 0-1250 m /0-50mil
US$182.61
Compatible with CM8811FN Coating Thickness Gauge Range: 0-1250 m /0-50mil is meticulously engineered for maximum efficiency and reliability. It is ideal for use with CM8811FN Coating Thickness Gauge Range: 0-1250 m /0-50mil
Overview:Coating Thickness Gauge CM8811FN is a highly intelligent and precise instrument used to quickly and accurately measure thickness of coating or plating on almost all kinds of metal surface. Designed to meet the demands of professional-grade applications, it ensures exceptional performance.
Availability:
In stock
SKU
HP20286
Shipping Estimate ( delivery to door )
CM8811FN Coating Thickness Gauge Range: 0-1250 m /0-50mil
Overview:
Coating Thickness Gauge CM8811FN is a highly intelligent and precise instrument used to quickly and accurately measure thickness of coating or plating on almost all kinds of metal surface.
It not only indicates thickness of coating or plating but also automatically identifies the base material.
It is applicable to measure non-magnetic painting, ceramic, enamel, plastic, rubber coating on magnetic base materials such as iron and steel , non- ferrous metal plating such as nickel and chromium, anticorrosive coating, non- conductive painting, plastic coating and anodic oxide film on non-magnetic conductive devices.
Function:
Measuring: Continuous and Single Measurement available
Display: Simultaneously display Measuring Value, Average Value, Maximum Value, Minimum Value and Standard Deviation
Memory: 80 data store
Unit: Metric/Imperial switchable (mil/um selectable)
Backlight: Brightness adjustable, clear and easy reading under any light condition
Alarm: Set higher and lower alarm range for measuring
Calibration: Zero-in, 2 points calibration and multi-point calibration selectable
Battery: Low battery indication
Language: English and Chinese selectable (customization for other languages available)
Data Delete: delete a single data or clear all the data
Specification
Range: 0-1250 m /0-50mil
Resolution: 0.1 m/mil
Accuracy: ¨¤(2%+2 m) / ¨¤(2%+0.1mil)
Display: TFT 320*240 LCD
Test Limits:
Surface curvature: convex 1.5 mm / concave 7 mm
Minimum test surface: |8mm
Minimum thickness of base material: 0.4mm
Operation Condition(not in high magnetic field):
Temperature: 0a 40
| GTIN, UPC, EAN, JAN or ISBN | 784645976936 |
|---|---|
| Feature | The CM8811FN Coating Thickness Gauge is an intelligent and precise instrument designed to quickly and accurately measure the thickness of coatings and plating on almost all types of metal surfaces. This gauge is a must-have tool for industries that rely on accurate thickness measurements, including automotive, manufacturing, aerospace, and electronics. The CM8811FN boasts an impressive range of 0-1250μm or 0-50mil, making it suitable for a wide variety of applications. It not only indicates the thickness of coatings or plating but also automatically identifies the base material, making it easy to use and highly efficient. One of the most significant features of the CM8811FN is its ability to measure non-magnetic painting, ceramic, enamel, plastic, rubber coating on magnetic base materials such as iron and steel, non-ferrous metal plating such as nickel & chromium, anticorrosive coating, non-conductive painting, plastic coating, and anodic oxide film on non-magnetic conductive devices. The CM8811FN offers continuous and single measurement available and simultaneously displays the measuring value, average value, maximum value, minimum value, and standard deviation. It also has memory capacity for 80 data storage and unit selection for metric/imperial switchable (mil/um selectable). This gauge features a brightness adjustable backlight with clear and easy reading under any light condition and the ability to set higher and lower alarm range for measuring. Calibration is easy with the zero-in, 2 points calibration, and multi-point calibration selectable. With an accuracy of ±(2%+2μm) / ±(2%+0.1mil) and a TFT 320*240 LCD display, this gauge offers unparalleled precision and performance. The CM8811FN also features a low battery indication and language selection for English and Chinese (customization for other languages available). It can delete a single data or clear all data, making it an ideal choice for businesses that require a reliable and efficient measuring device. In summary, the CM8811FN Coating Thickness Gauge is an indispensable tool for industries that require accurate and reliable coating thickness measurements. Its intelligent features, precision, and efficiency make it the top choice for automotive, manufacturing, aerospace, and electronics. |
| Compatible Model Brand | HUPARTS for other brand |
| Replacement Part Number | CM8811FN |
| Brand | HUPARTS |
